303WA-2 LW, MW-Shortwave Receiving antenna

ApexRadio 303WA-2

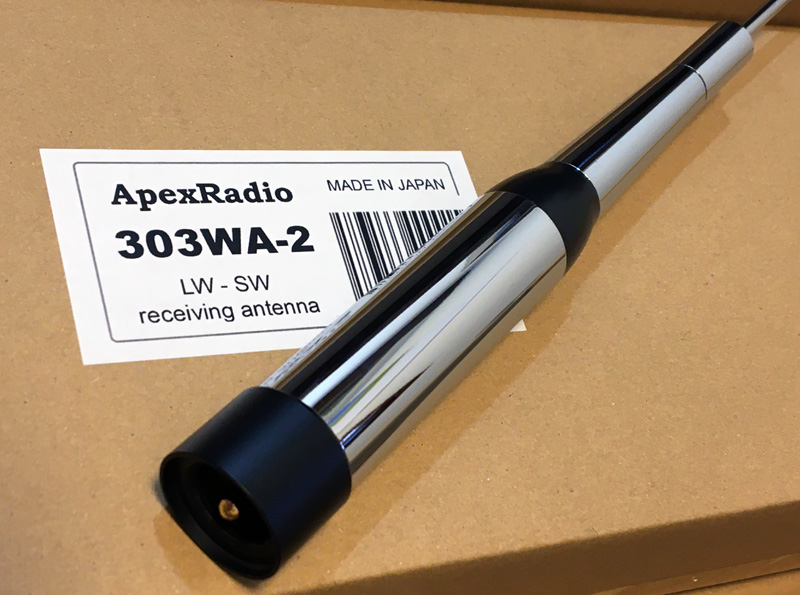

The 303WA-2 is a quality passive receiving antenna (not for transmit) providing coverage from 30 kHz to 30 MHz. The small size and relatively light-weight design is ideal for installation in a confined space such as apartment balcony. 303WA-2 is passive, it provides superior low noise performance, free of cross and inter-modulations.

The 303WA-2 has a "U" bolt metal fitting that will require a short stub mast (not supplied). The mast diameter can be 10-50mm (0.4 to 1.9 inches).

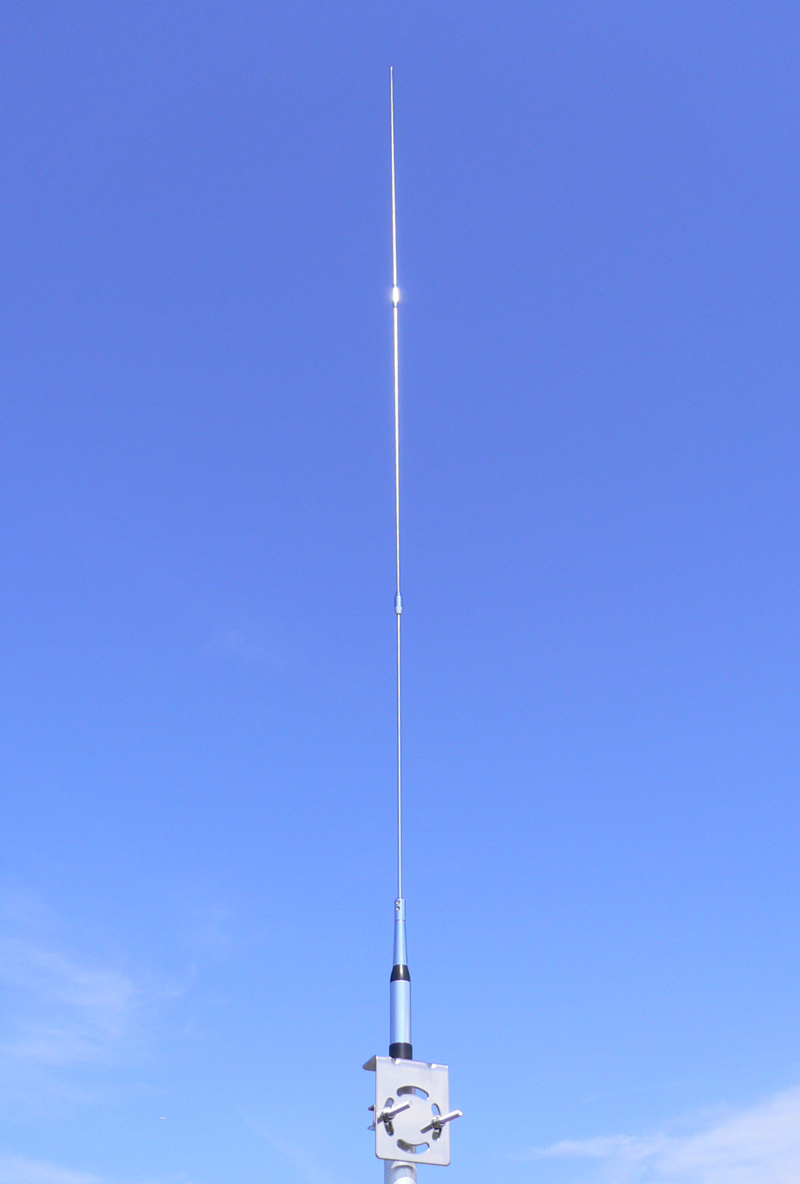

The antenna has a total height of 1.8 m (6 feet) in three sections. It comes with a preassembled 10 m (30 feet) length of cable with a M (PL259) plug to connect to the antenna base and a BNC plug for your radio receiver.

SPECIFICATIONS

Frequency Range: 30kHz - 30MHz
Length : 1.8m (approx.)
Weight : 450g. (approx.)
Connector : PL259 (M type)
Supplied coax. cable : RG-58A/U 10m (MP-BNCP）
Mast diameter : 10 - 50 mm
Supplied accessories : Coax. cable (10m), Set of metal fitting
EAN / JAN : 4573533000015

Click here to view 303WA-2 Japanese/English Instruction Sheet

---
