35BNC-AT3 Adapter cable with ATT &surge arrester

ApexRadio 35BNC-AT3

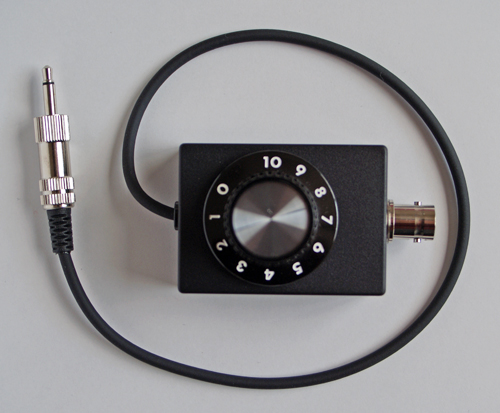

The 35BNC-AT3 is an adapter cable (approx. 30cm) with variable attenuator for connecting a coaxial cable equipped with BNC plug (BNCP) to a portable shortwave receiver with a 3.5 mm mono jack as an external antenna terminal. Typical portable shortwave radios are SONY ICF-SW7600 series, C.CRANE SKYWAVE SSB2 and SKYWAVE2.

The size of this case is 55 x 40 x 20 mm. In addition, a surge arrestor for ESD (Electro-Static Discharge) measures is built in and it protects against surge voltage and so on. The 35BNC-AT3 is designed for receiving purposes only.

SPECIFICATIONS

Connetors	3.5mm mono plug - BNC jack (BNCJ)
Case dimension	55 x 40 x 20 mm (protruding parts not included)
Cable length	30cm (approx.)
Weight	60 g. (approx.)
EAN / JAN	4573533000039

Portable shortwave receivers like ICF-SW7600GR have models outputting DC voltage to external antenna terminals. 35BNC-AT3 isolates the DC voltage with a built - in capacitor, so you can connect various external antennas and so on.

---
